ORTHOS

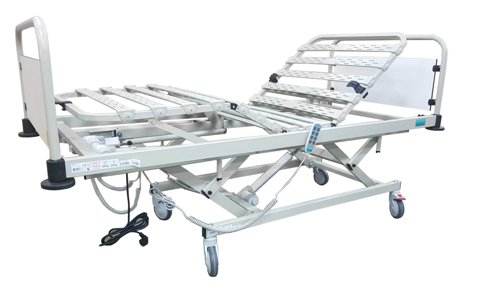

VICTORY HO HI-LOW HPL Electric Hospital Bed – Height Adjustable Medical Bed
Electric hospital bed for medium to high bacteriological risk environments
The VICTORY HO HI-LOW HPL electric hospital bed is a professional hospital bed designed and recommended for healthcare facilities operating in medium to high bacteriological risk environments.
It combines mechanical robustness, infection control, and clinical safety, making it an ideal solution for hospitals, clinics and healthcare centres requiring reliable and hygienic patient care equipment.
Its electric Hi-Lo height adjustment system improves caregiver ergonomics while ensuring optimal patient comfort.
Robust and hygienic design for hospital use
The VICTORY HO HI-LOW HPL hospital bed is built with:
- a reinforced steel frame (60 × 30 × 1.5 mm) with epoxy powder coating,
- a four-section mattress platform (three articulated sections and one fixed section),
- polymer slats allowing easy disinfection and reduced bacteriological risk,
- detachable HPL (compact phenolic laminate) headboards and footboards, grey colour, for easy access and cleaning,
- wall protection bumpers on all four corners,
- integrated mattress retainers to prevent mattress movement.
All materials are selected to withstand intensive hospital cleaning and disinfection protocols.
Electrically articulated medical bed with intuitive control
The bed is equipped with independent low-voltage electric motors (6000 N) allowing:
- electric backrest articulation,
- electric leg section articulation,
- electric height adjustment (Hi-Lo).
The control system is simple, intuitive and safe, designed for continuous daily use by healthcare staff.
Hi-Lo lifting system: double H or scissor mechanism
The VICTORY HO HI-LOW HPL is available with two lifting technologies:
- Double H Hi-Lo system
- enhanced lateral stability
- high structural robustness
- ABS medical castors Ø 125 mm
- Scissor Hi-Lo system
- compact lifting structure
- steel castors Ø 100 mm
These options allow healthcare facilities to adapt the bed to their technical, operational and budgetary constraints.
Safety, mobility and medical compatibility
The hospital bed includes:
- medical castors with brakes for safe and controlled movement,
- preparation for universal folding side rails (optional),
- structure prepared for two accessory poles (e.g. IV pole and monkey pole),
- compatibility with standard hospital accessories and medical equipment.
The VICTORY HO HI-LOW HPL is CE certified and manufactured in accordance with EU hospital bed standards.
Why choose the VICTORY HO HI-LOW HPL hospital bed?
- Electric hospital bed with Hi-Lo height adjustment
- Designed for infection-control environments
- Robust steel structure for intensive use
- HPL headboards and footboards: durable and hygienic
- Independent electric articulation of back and legs
- Wide range of configuration and accessory options
- European manufacturing by Orthos XXI
Ref. : LOWPHL
